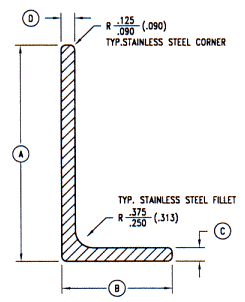

ANGLES
STANDARD
DIM SIZE RANGE
A 1.00"-9.00"
B 1.00"-9.00"
C 0.188" & LARGER
D 0.188 & LARGER
ROLLED FORMED*
DIM SIZE RANGE
A 1.00"-4.00"
B 1.00-4.00"
C 0.188" & LARGER
D 0.188 & LARGER
  • If the configuration of A + B dimensions exceeds a 6.5" circle size, a minimum order quantity of 15,000 may be required depending on the size.
  • Random lengths or cut lengths.
  • No tooling charge on standard stainless structural.

    * Rolled formed minimum
       q    uantity 40,000 lbs. Maximum
       length 40' available in a variety
       of finishes.
TEES ANGLES CHANNELS I-BEAMS
